Final Architecture Overview

After validating the core pipeline, the architecture naturally evolved to accommodate new features — without altering its foundational principles.

The final solution maintains a serverless, event-driven design, now extended with additional processing layers, automated scheduling, and integrated analytics — enabling a full journey from raw data to business-ready insights.

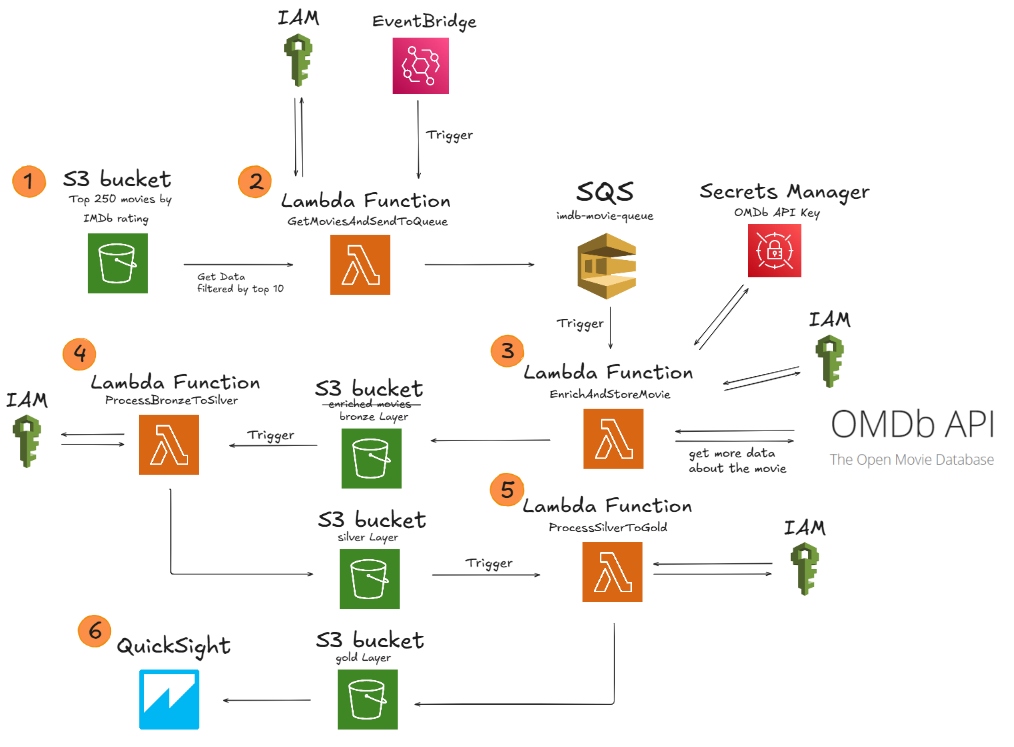

Final Architecture Diagram

This diagram illustrates the complete data flow: from ingestion and enrichment to layered storage, transformation, and business intelligence integration.

Extended Data Flow: From Raw to Insight

The original flow remains intact, now enhanced with modular downstream layers.

1. Ingestion: Lambda – GetMoviesAndSendToQueue

• This Lambda function initiates the pipeline by fetching the top n movies (default 10) from the source dataset.
• Movies are sent in batches (batch_size, default 1) to an SQS queue.
• The function is activated by an EventBridge trigger, which is scheduled to occur once daily at 3 AM.

2. Enrichment: Lambda – EnrichAndStoreMovie

• This Lambda function enriches the initial movie data with metadata from the OMDb API.
• Triggered by messages arriving in the SQS queue.
• The OMDb API key is securely managed through AWS Secrets Manager.
• The enriched data, typically in a raw, extended JSON format, is then stored in the Bronze layer S3 bucket.

3. Cleaning and Normalization: Lambda – ProcessBronzeToSilver

• This Lambda function transforms the raw, enriched data into a clean, standardized format.
• It is activated by a trigger from new data objects being created or updated in the Bronze layer S3 bucket.
• The refined and standardized records are then written to the Silver layer S3 bucket.

4. Aggregation and Optimization: Lambda – ProcessSilverToGold

• This Lambda function aggregates and optimizes the standardized data from the Silver layer, preparing it for analytical consumption.
• It is activated by a trigger from new data being added to the Silver layer S3 bucket.
• The result is a set of analytics-ready datasets, stored in the Gold layer S3 bucket

5. Data Visualization: Amazon QuickSight

• QuickSight provides a powerful business intelligence and data visualization platform.
• It is directly connected to the Gold layer S3 bucket, allowing it to query the analytics-ready datasets.

Each Lambda function described above operates under a dedicated IAM Role, ensuring the principle of least privilege by granting only the necessary permissions for its specific tasks within the AWS environment.

Summary of Benefits

This layered and modular architecture delivers:

• Clear data lifecycle from raw to refined to aggregated
• Separation of concerns across processing stages
• Scalability and resilience, with event-driven automation
• Observability and fault tolerance through logging and retries
• Analytics readiness, with BI and AI integration
• Infrastructure as Code, enabling reproducible deployments

The architecture is now fully production-ready and easily extensible to support new domains, datasets, and use cases.
