Infrastructure as Code (IaC)

Infrastructure as Code (IaC) is a core principle of this project, enabling consistent, repeatable, and version-controlled infrastructure provisioning.

To achieve this, we use the AWS Serverless Application Model (SAM) in combination with AWS CloudFormation. This approach allows us to define and manage all infrastructure components — such as S3 buckets, IAM roles, Lambda functions, and event triggers — directly from declarative YAML templates.

Why SAM?

AWS SAM (Serverless Application Model) is an extension of CloudFormation tailored for serverless applications. It simplifies the syntax required to define serverless resources while still translating everything into standard CloudFormation during deployment.

For official documentation, refer to the AWS SAM Developer Guide.

CloudFormation Integration

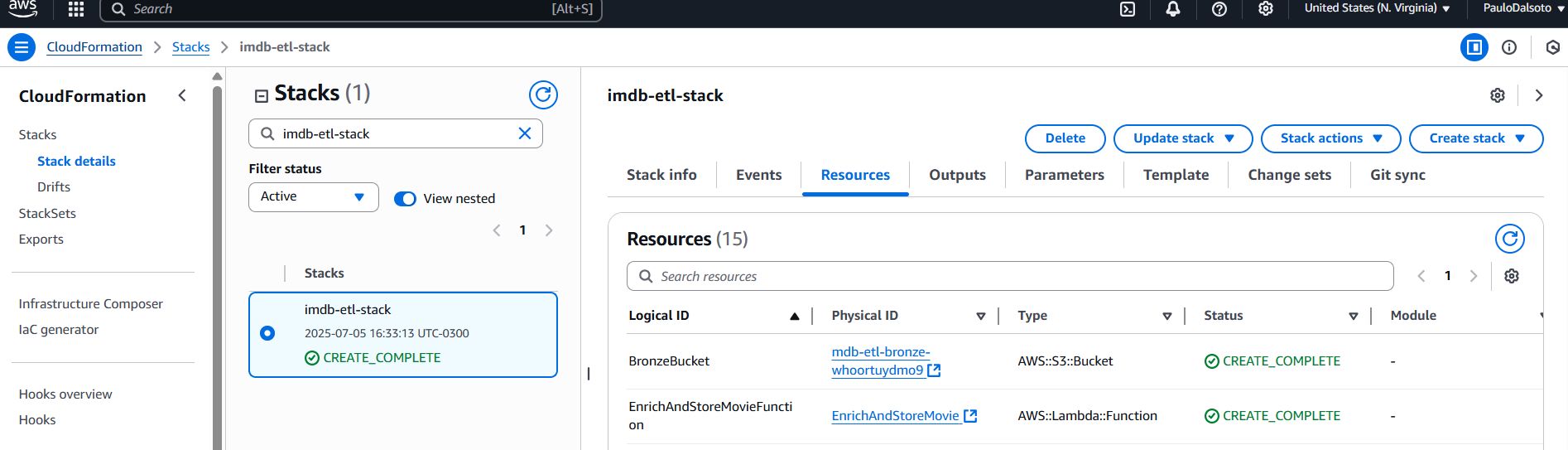

All SAM templates are deployed as CloudFormation stacks, which can be viewed and managed via the AWS Console.

Example: Creating an S3 Bucket

Below is a basic example of how a Bronze-layer S3 bucket is defined using SAM:

Resources:
  BronzeBucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: !Ref BronzeBucketName
      PublicAccessBlockConfiguration:
        BlockPublicAcls: true
        BlockPublicPolicy: true
        IgnorePublicAcls: true
        RestrictPublicBuckets: true

Example: Creating an IAM Role

Here is how an IAM role is provisioned for a Lambda function, following the principle of least privilege:

Resources:
  GetMoviesAndSendToQueueLambdaRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
            Action: sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
      Policies:
        - PolicyName: SQSWritePolicy
          PolicyDocument:
            Version: '2012-10-17'
            Statement:
              - Effect: Allow
                Action: sqs:SendMessage
                Resource: !GetAtt ImdbMovieQueue.Arn

Example: Creating a Lambda Function

Each Lambda function is fully defined with runtime, permissions, triggers, environment variables, and resource limits:

Resources:
  GetMoviesAndSendToQueueFunction:
    Type: AWS::Serverless::Function
    Properties:
      FunctionName: GetMoviesAndSendToQueue
      Description: Fetches top movies from IMDb and sends them to SQS.
      Handler: fetch_top_movies.lambda_handler
      Runtime: python3.13
      Timeout: 60
      MemorySize: 128
      CodeUri: lambdas/fetch_top_movies/
      Environment:
        Variables:
          SQS_QUEUE_URL: !Ref ImdbMovieQueue
          IMDB_DATA_URL: !Ref imdbDataUrl
          MAX_RETRIES: !Ref maxRetries
          BASE_DELAY_SECONDS: !Ref baseDelaySeconds
      Role: !GetAtt GetMoviesAndSendToQueueLambdaRole.Arn
      Events:
        DailyScheduler:
          Type: Schedule
          Properties:
            Schedule: cron(0 3 * * ? *)
            Enabled: true
            Input: '{"top_n": 10, "batch_size": 1}'

Full Template

The full template.yaml file used in this project is publicly available at:

• View template.yaml on GitHub

Learn More

To deepen your understanding of Infrastructure as Code and the technologies used in this project, explore the following resources:

• AWS SAM Developer Guide
  Official documentation for the AWS Serverless Application Model (SAM).

• AWS CloudFormation Documentation
  Comprehensive guide to defining and deploying AWS infrastructure as code.

• AWS SAM GitHub Repository
  Source code, issues, and community discussions for the SAM CLI and specification.

• Deploying Serverless Applications with SAM
  Step-by-step deployment workflow using the SAM CLI.
